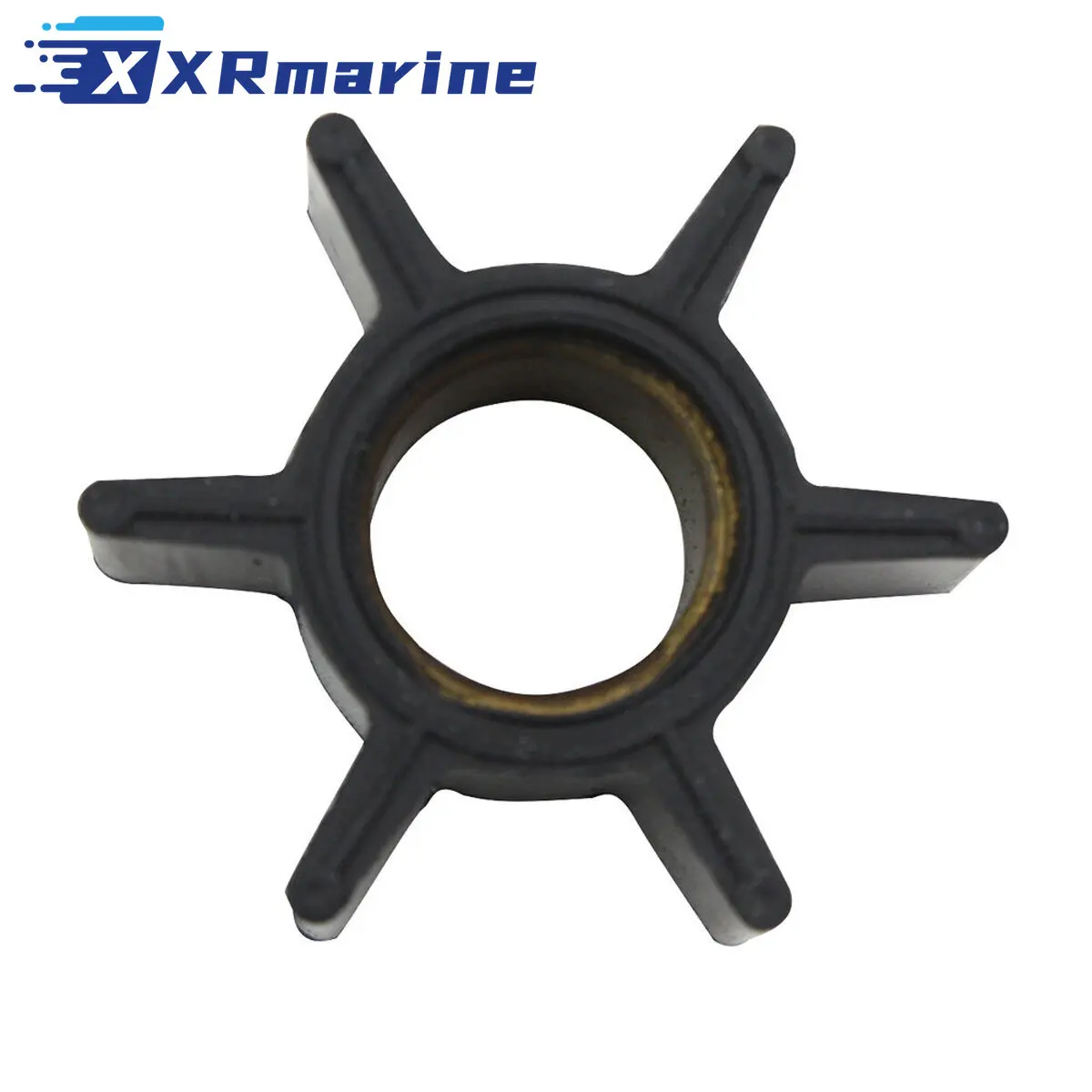

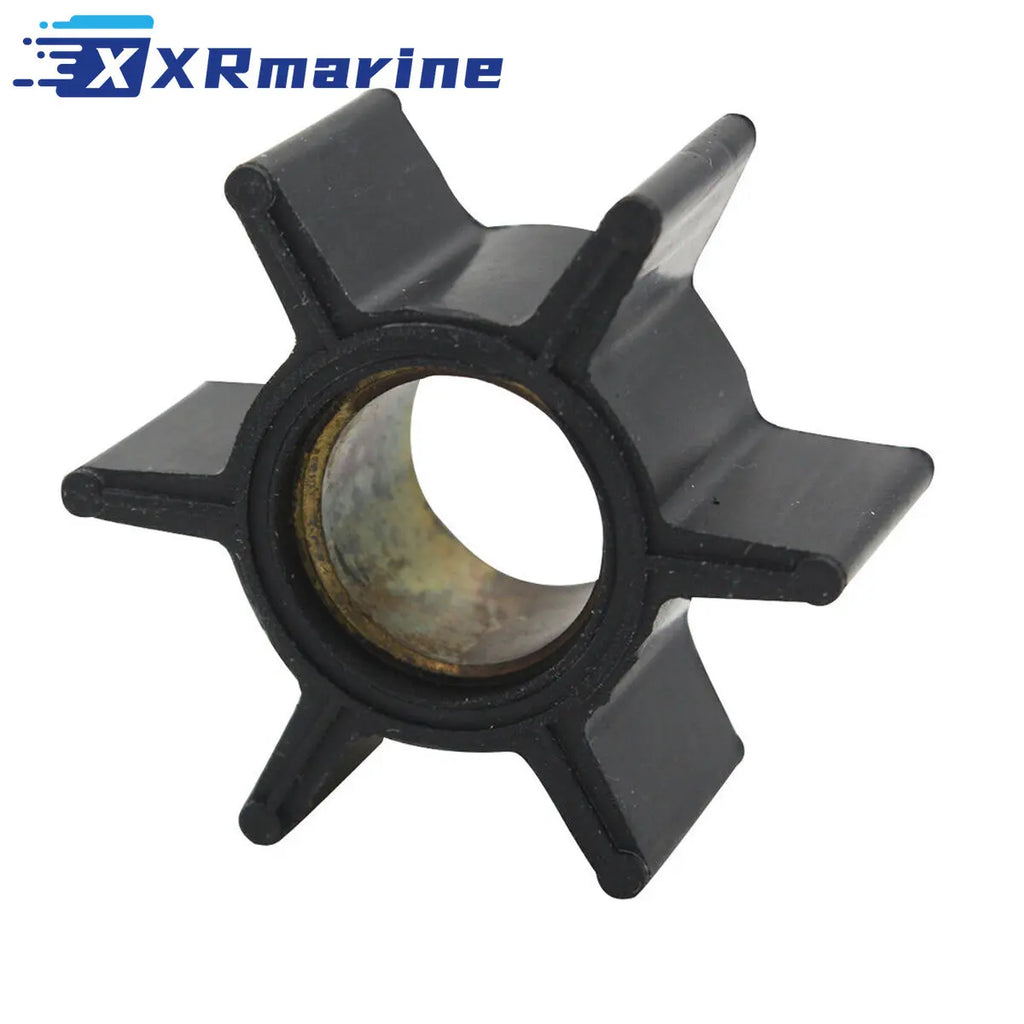

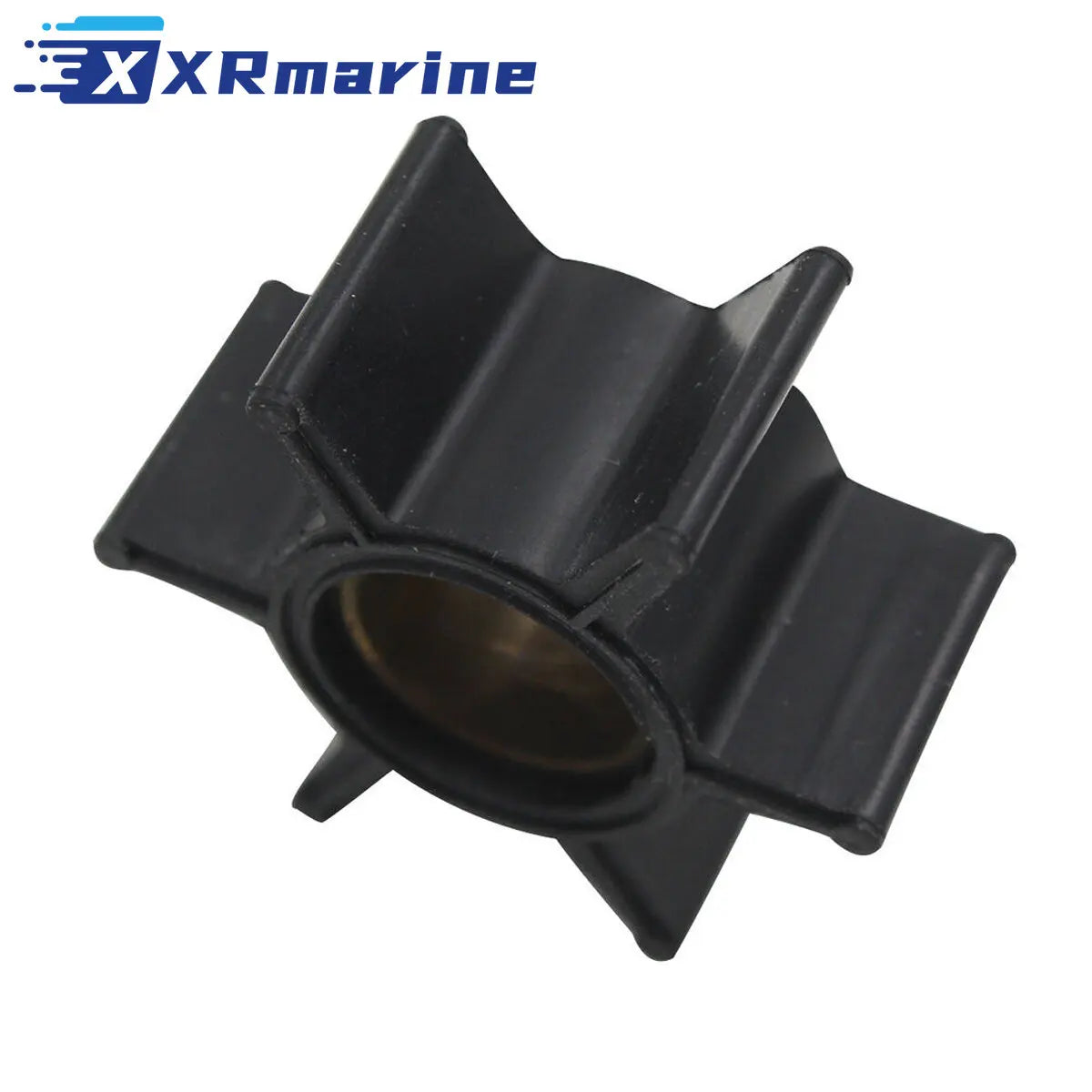

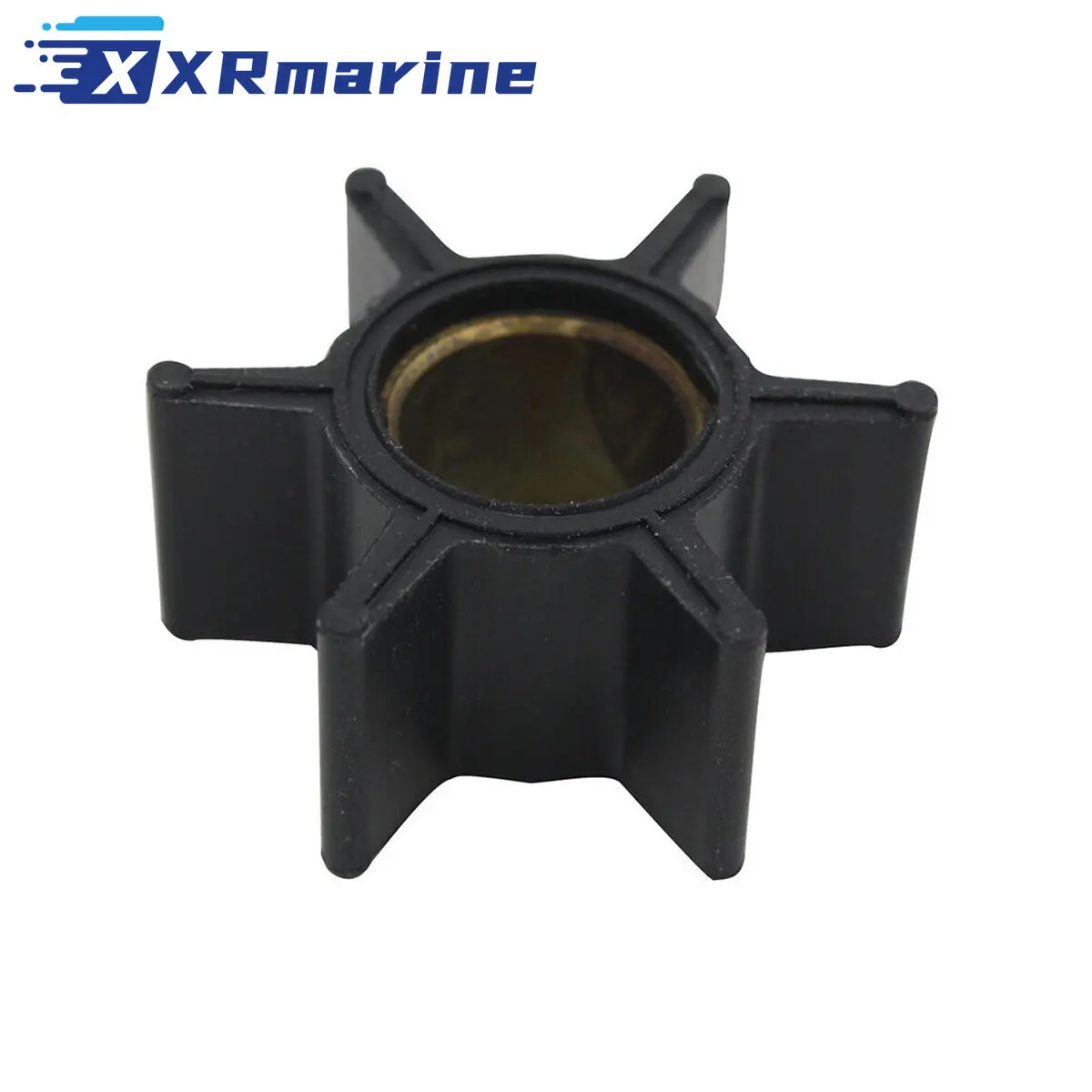

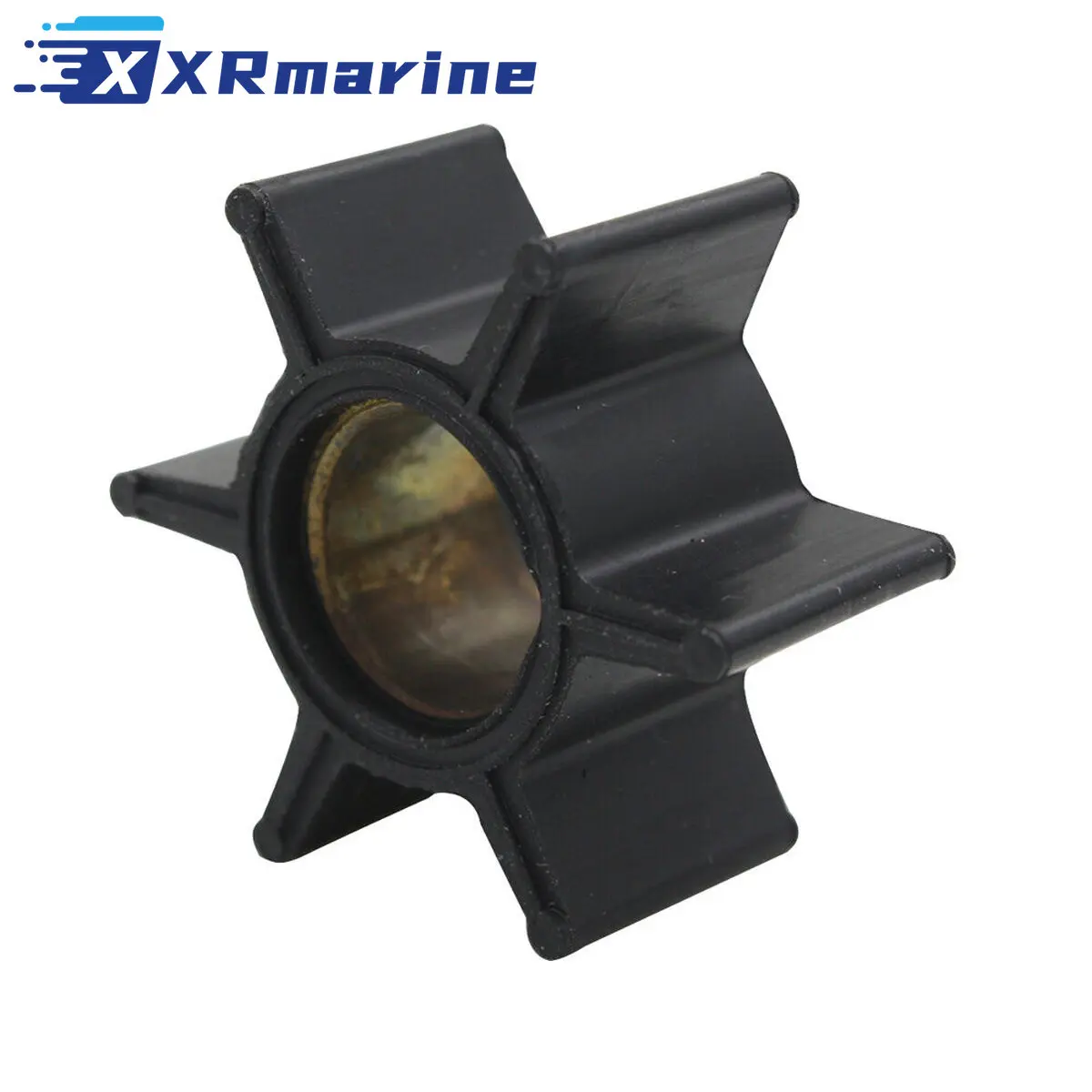

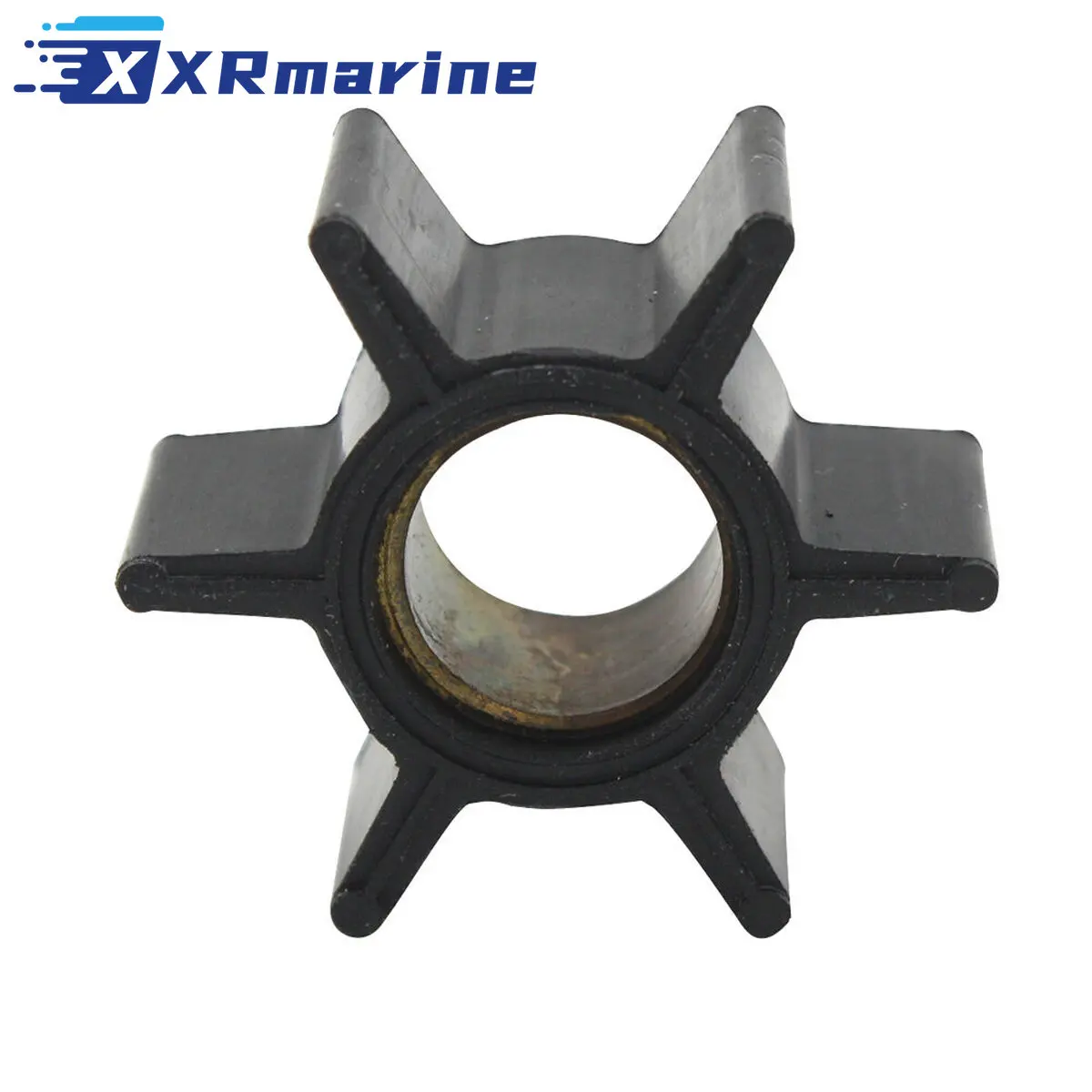

47-22748 Water Pump Impeller for Mercury 3.5hp 3.9hp 5hp 6hp Outboards Motors Replace Sierra 18-3012
$12,899.09
SPECIFICATIONS
Brand Name: XRmarine
Condition: New
Dimensions (L x W x H) (mm): As shown in the figure
Engine Position: Outboard
Engine Type: Mercury 3.5hp 3.9hp 5hp 6hp Outboards
Fit Brand: Mercury
OEM Part #1: 47-22748
Origin: TW(Origin)
Sierra: 18-3012
Type: Outboard Water Pump Impeller
Water Pump Impeller Service Part for Mercury 3.5hp 3.9hp 5hp 6hp Models Outboards
Package Included:
Impeller x 1
Specifications:
Condition:Brand New
Replaces OEM Part #: 47-22748
Replaces Sierra #: 18-3012
Fitment:
Fits the Following Mercury Outboards Models
3.5HP Serial 358136 - 6202172
3.9HP Serial 1655013 - 2498135
5HP Serial 574128 - 786612
6HP Serial 888005 - 1916138
MARK 5HP Serial 574128 786612
MARK 6HP 6A Serial 888005 & UP
Blades: 6
Impeller Height: 14.4 mm / 0.57 "
Overall Diameter: 32.0 mm / 1.26 "
Hub Shaft Diameter: 11.6 mm / 0.46 "
3.5HP Serial 358136 - 6202172
3.9HP Serial 1655013 - 2498135
5HP Serial 574128 - 786612
6HP Serial 888005 - 1916138
MARK 5HP Serial 574128 786612
MARK 6HP 6A Serial 888005 & UP
Blades: 6
Impeller Height: 14.4 mm / 0.57 "
Overall Diameter: 32.0 mm / 1.26 "
Hub Shaft Diameter: 11.6 mm / 0.46 "
